Description |

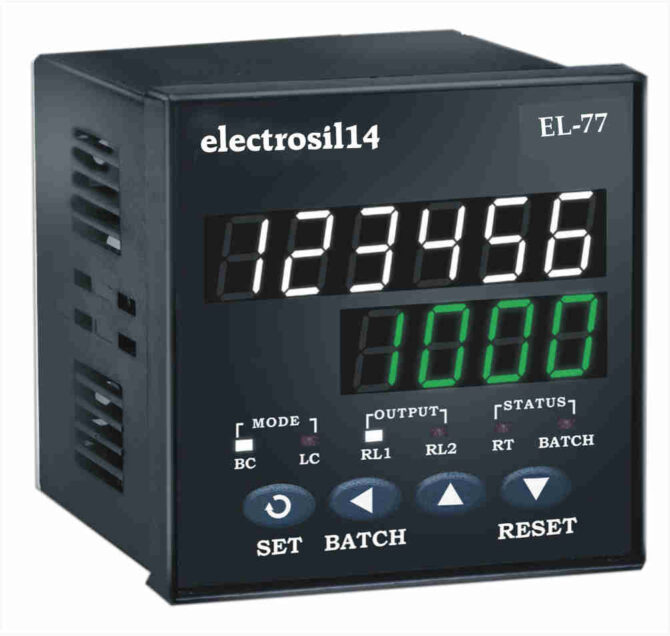

EL-77 |
|
| Display | Height & Colour | 0.39” White & 0.39” Pure Green |
| No. of Digits | 6 Digits Upper Row & 4 Digits Lower Row | |
| LED Indication | (1) Mode (BC/ LC/ PC) (2) Output (RL1, RL2) (3) Status (Batch/ AR) |
|
| Count Setting | Through Keyboard | |
Input Specification |
||
| Measurement | Count Input | Proximity S/W (PNP/NPN) Potential Free Contact |
| Reset Input | Front Switch & Remote Reset | |
| Sensor Supply | 12 VDC @ 30mA SCP | |
Output Specification |
||
| Output | Relay | 5A @ 250 VAC/ 30VDC |
| SSR Drive | 12 VDC @ 30mA | |
General Specification |
||
| Supply Voltage | 90 – 270 VAC/ DC (24 VDC Available on Request) |
|
| Temperature And Humidity | Operating: 0-50°C Storage: -20° to 75°C 95% RH (Non-condensing) |
|
| Dimensions in mm (H x W x D) | 72 x 72 x 65 | |
EL-77
- Programmable Function : Batch / Length / Preset
- Count Range from 0 to 999999 Counts
- Programmable Diameter in Length Mode
- Count Retention at Power Fail
- Two Independent Output
- Speed (Meter / Min) Display in Length Mode
- F o r O utput 1, Relay & Buzzer Output will work simultaneously (Except 48×48 size)
- RPM Value will be displayed in Preset Mode
- Universal supply voltage from 90 to 270 VAC
- Supply 24 VDC Available on Request
