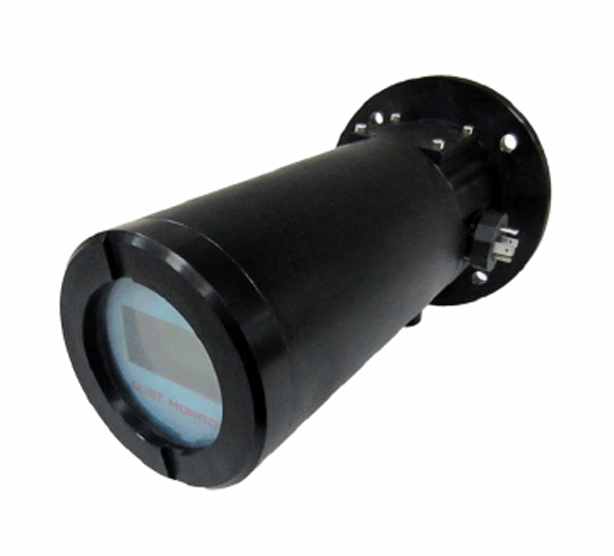

Overview
LSDM14 is an on-line dust monitoring device using the mainstream technology of laser back-scattered light principle with imported core components LSDM14 is mainly used for continuous monitoring of various sources emissions of particulate matter concentrations. It can be connected with dust monitoring network bya shared set of data acquisition and processing background.
It is available for the monitoring and control of soot emission, and removal of dust for power generation boilers, industrial furnaces. industrial boilers in the thermal power, iron and steel metallurgy, petrochemical, chemical, Textile Boilers cement production, ceramics, waster incineration Etc.

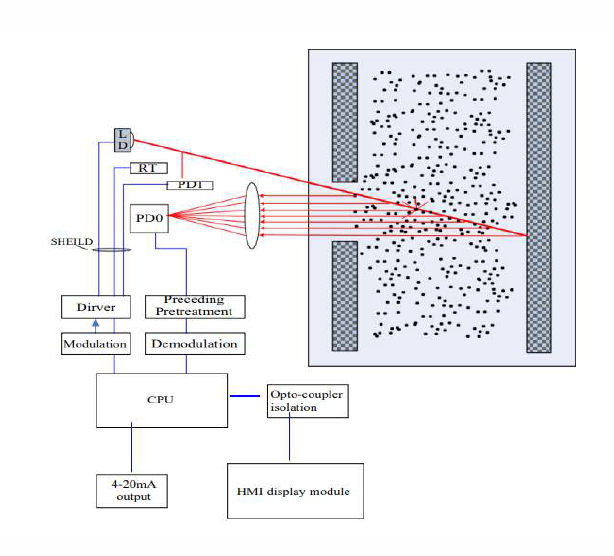

Measuring Principle
Series of LSDM dust monitors consists of optical laser parts, Circuit and control section calibrator and purge system. The laser beam (650mm) comes across the detection area and produces scattered light afer effect with dust particles. the back-scatterd light crosses the lens converges into photosensitive detector. Analyzer circuit and control section
converts light signal into signal output which is proportional to the dust concentration, and obtains dust particles emission concentration of pollution.
Features
1.In-situ zeroing and span calibration.
2.Automatic gain control function and temperature compensation.
3.Smart appearance. easy installation, convenient disassembly.
4.Without background light influence
5. Infrared remote control

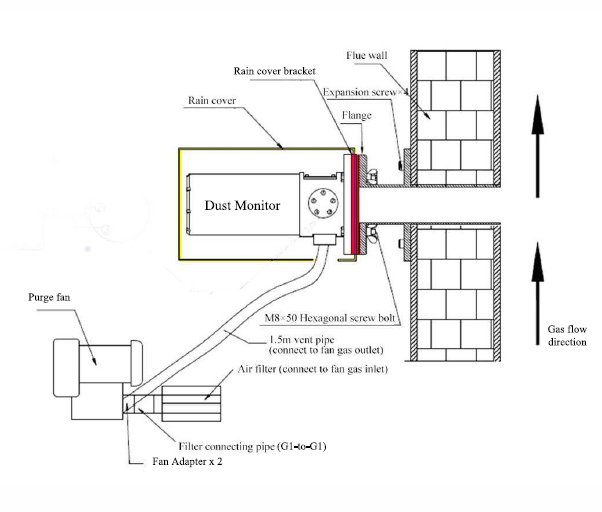

External Dimension
1. Installation on standard flanpe to the chimney
2. Installing rainproof on backend of monitor
3. power and gas source connection at backend of monitor
