| Description | PI-JD-2 | |
| Display | Height & Colour | 2.7” Red |
| No. of Digits | 4 Digits Single Row | |
| Input Specification | ||
| Measurement | Analog Input | T/C: J, K, R, S, N, T, B RTD: Pt-100 0-1 VDC, 0-3.3 VDC, 0-5 VDC, 0-10VDC, 0-20 mA, 4-20 mA |
| Resolution | T/C : 1 °C Pt-100 : 1 / 0.1 °C Analog : 1/ 0.1/ 0.01/ 0.001 |
|
| Sampling Rate | 250msec | |
| Accuracy | 0.3% FS | |
| General Specification | ||
| Supply Voltage | 90 – 270 VAC/ DC (24 VDC Available on Request) |
|
| Temperature And Humidity | Operating: 0-50°C Storage: -20° to 75°C 95% RH (Non-condensing) |
|
| Dimensions in mm (H x W x D) | 120 x 230 x 80 | |

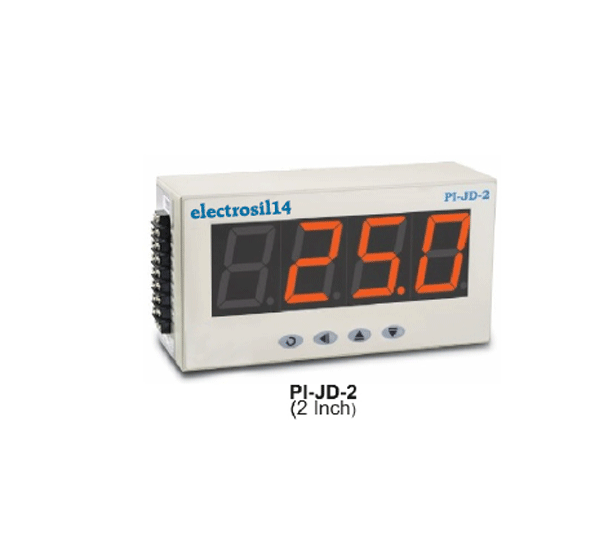

Process Indicator Jumbo Display With Universal Input (PI-JD-2)
- Universal Sensor Input
- Programmable Analog Range (-1999 to 9999)
- Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
- Excitation Voltage : 5 VDC / 10 VDC / 12 VDC / 24 VDC
- Program lock function (To prevent unauthorized tampering)
- User Calibration Available for Analog Inputs
- Universal supply voltage ranges from 90 to 270 VAC
- Supply 24 VDC Available on Request
