Description |

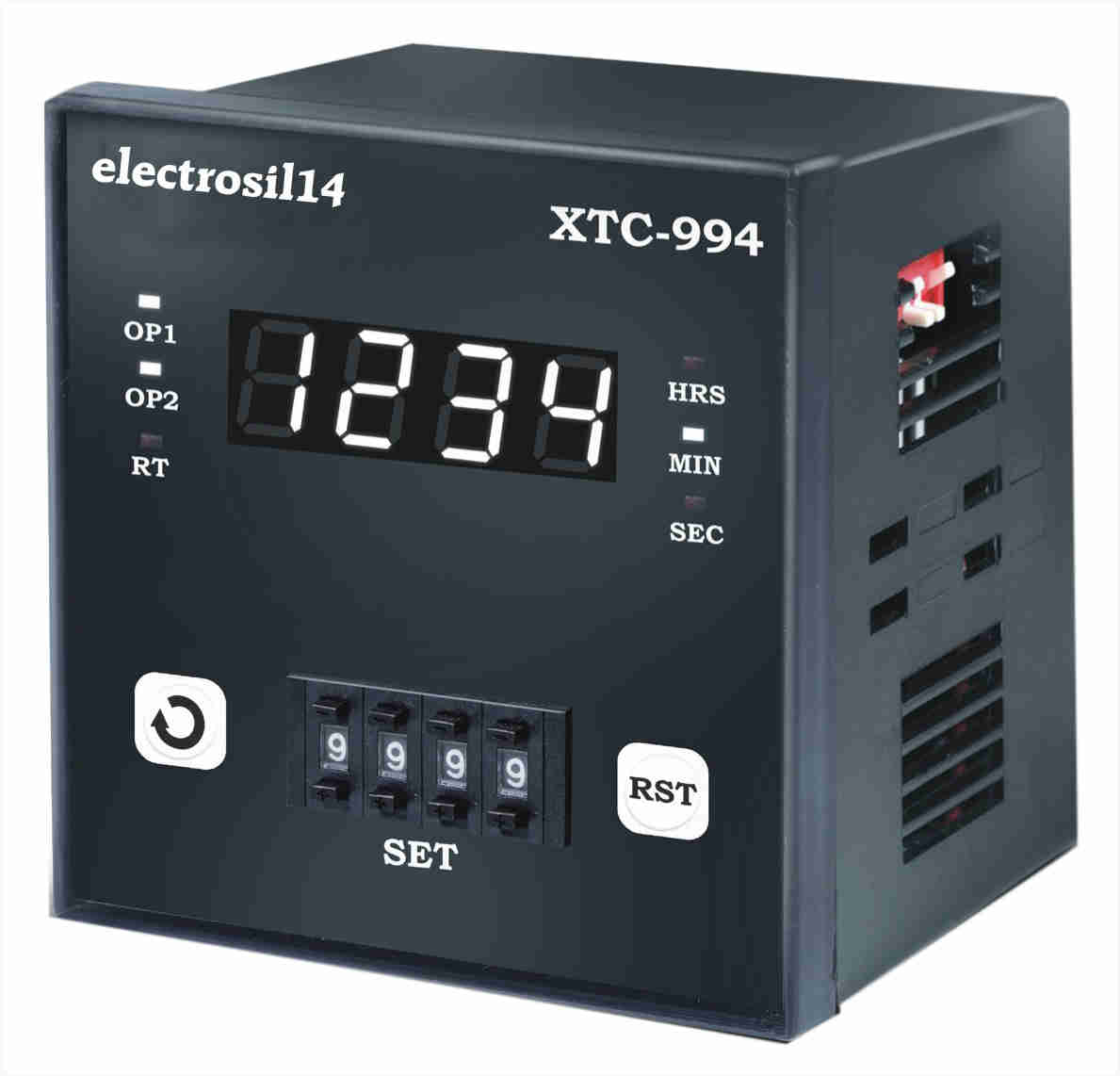

XTC-994 |
|
| Mode | (1) Counter (2) Timer |
|
| Display | Height & Colour | 0.56” White |
| No. of Digits | 4 Digits Single Row | |
| LED Indication | (1) Output (OP1, OP2, OP3) (2) Time Base (Only for Timer mode) |
|
| Count / Time Setting | Through Push wheel | |
| Time Range Setting | Through DIP Switch | |
Input Specification |
||
| Input | Count | Proximity S/W (PNP/NPN) Potential Free Contact 3 to 30 VDC Pulse |
| Reset | Front Key, Rear Terminals & Power On | |
| Sensor Excitation | 12 VDC @ 30mA (SCP) | |
Output Specification |
||
| Output | Relay | 5A @ 250 VAC/ 30VDC |
| SSR Drive | 12 VDC @ 30mA | |
General Specification |
||
| Supply Voltage | 90 – 270 VAC/ DC (24 VDC Available on Request) |
|
| Temperature And Humidity | Operating: 0-50°C Storage: -20° to 75°C 95% RH (Non-condensing) |
|
| Dimensions in mm (H x W x D) | 96 x 96 x 65 | |
XTC-994
- Programmable Function : (1) Counter Mode (C)
(2) Timer Mode (T) - Programmable Up / Down counting
- Configurable at Power ON (To avoid Tampering)
- 2 Programmable Output
- Memory Backup is unavailable
- Counting Range : 0 to 9999 Counts
- Timing Range : 0.01 Sec to 9999 Hrs via DIP Switch
- Universal supply voltage from 90 to 270 VAC
- Supply 24 VDC Available on Request
